General

General

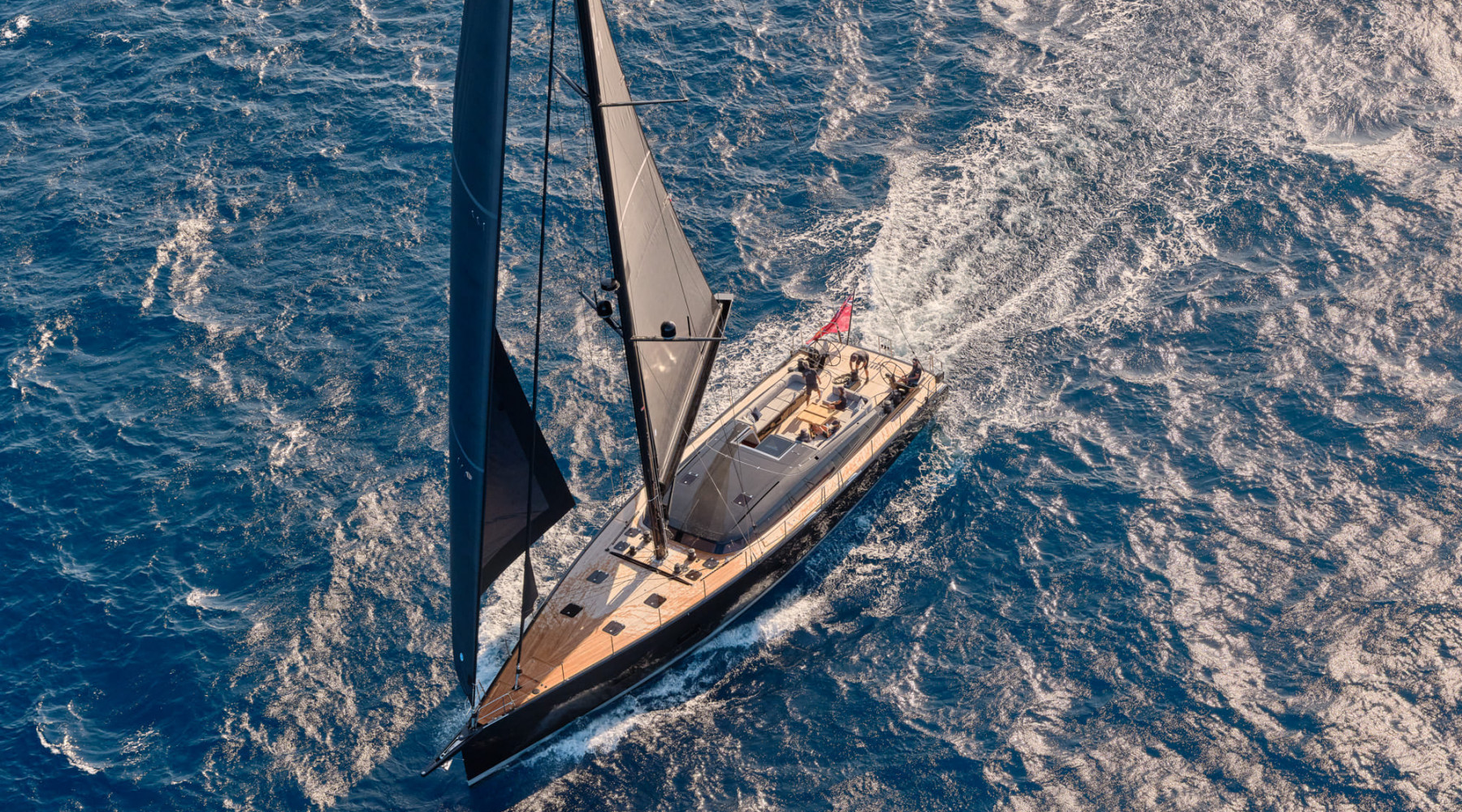

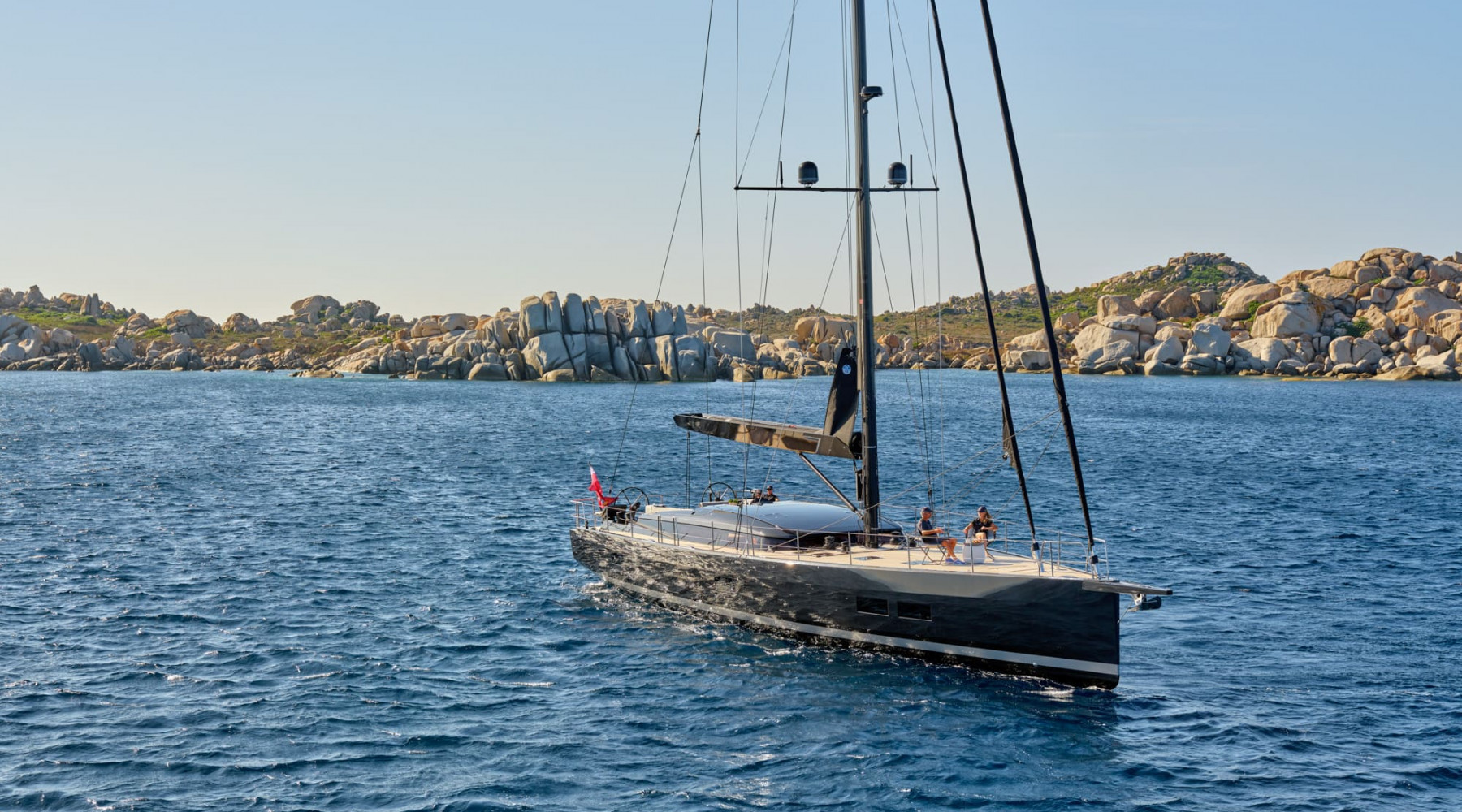

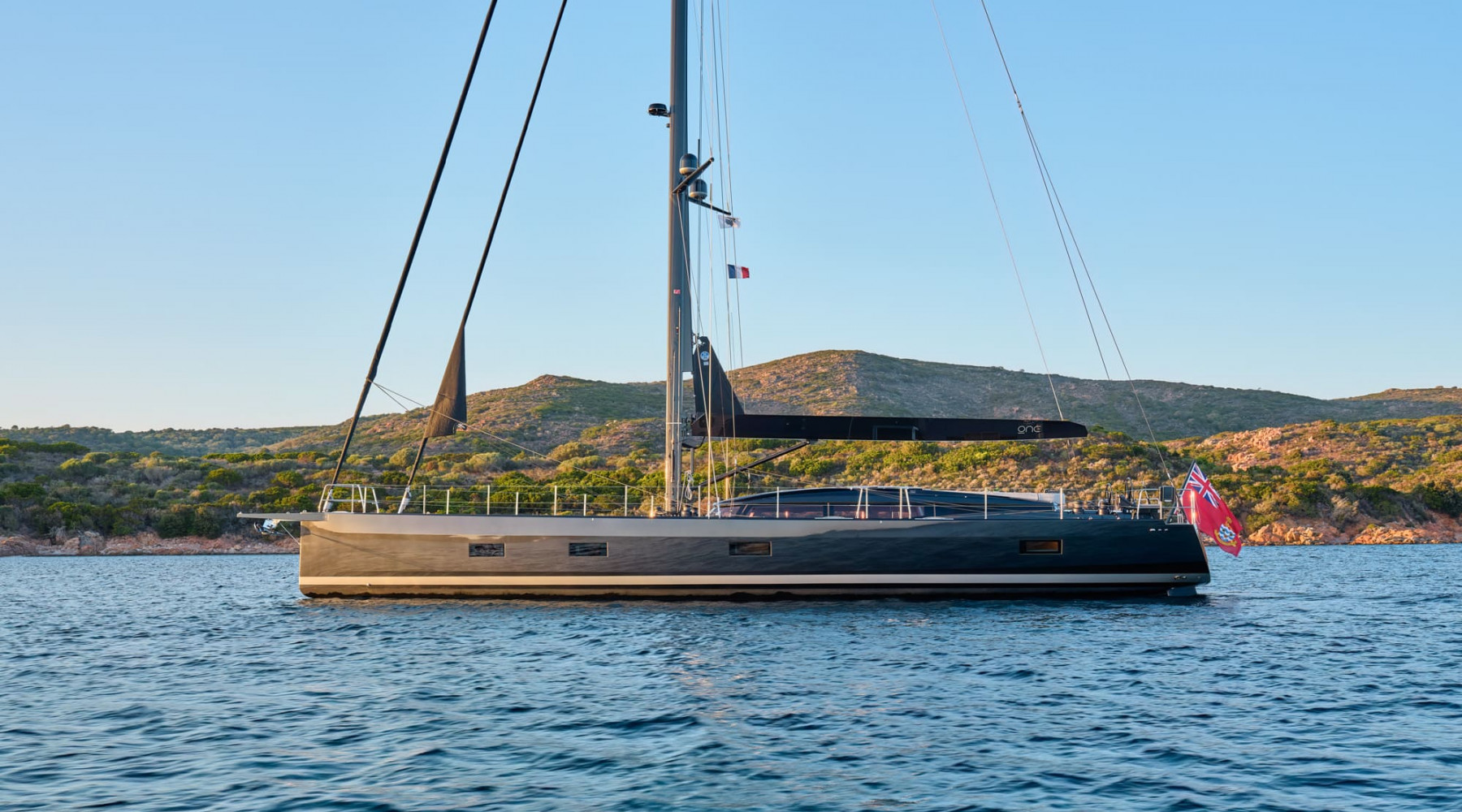

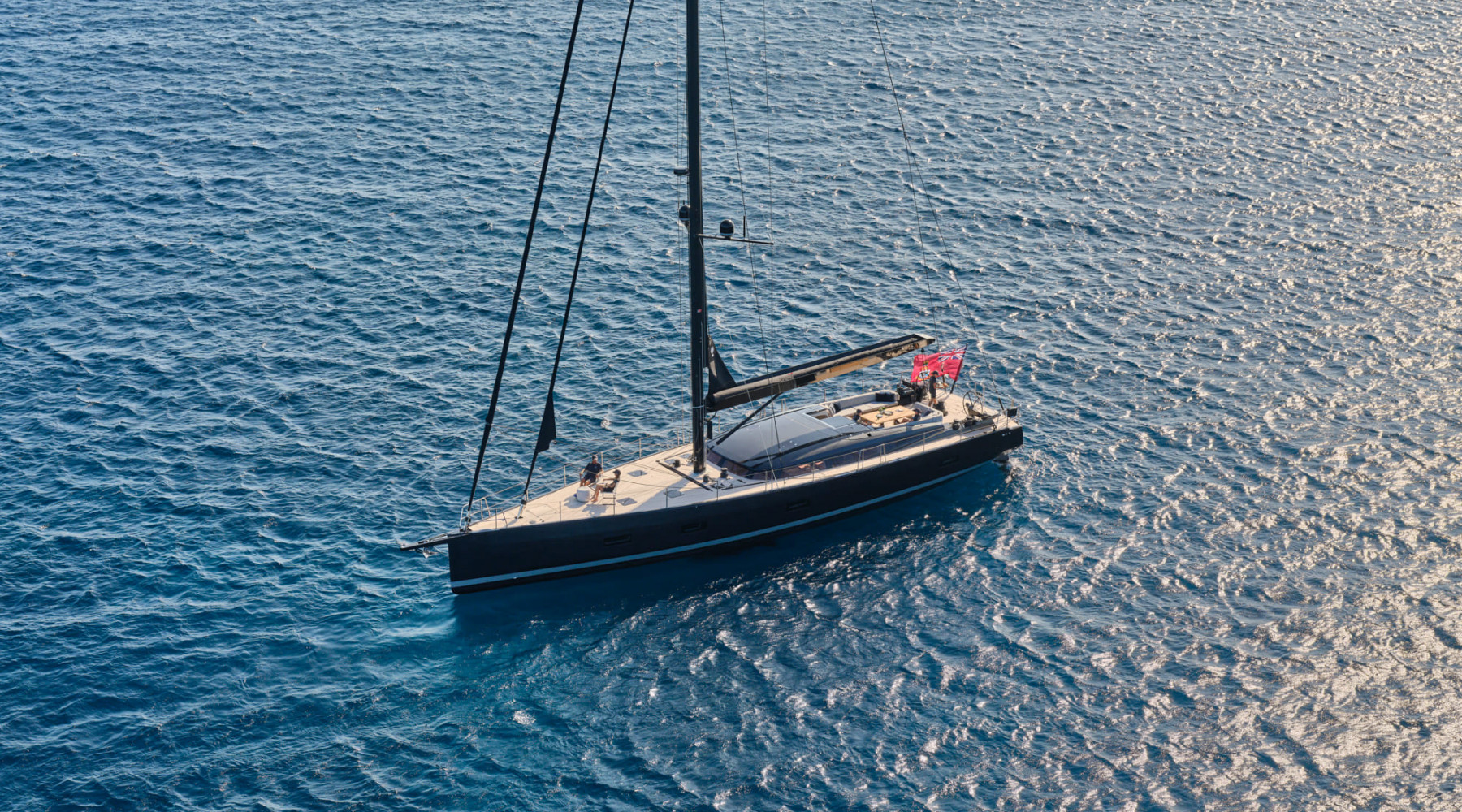

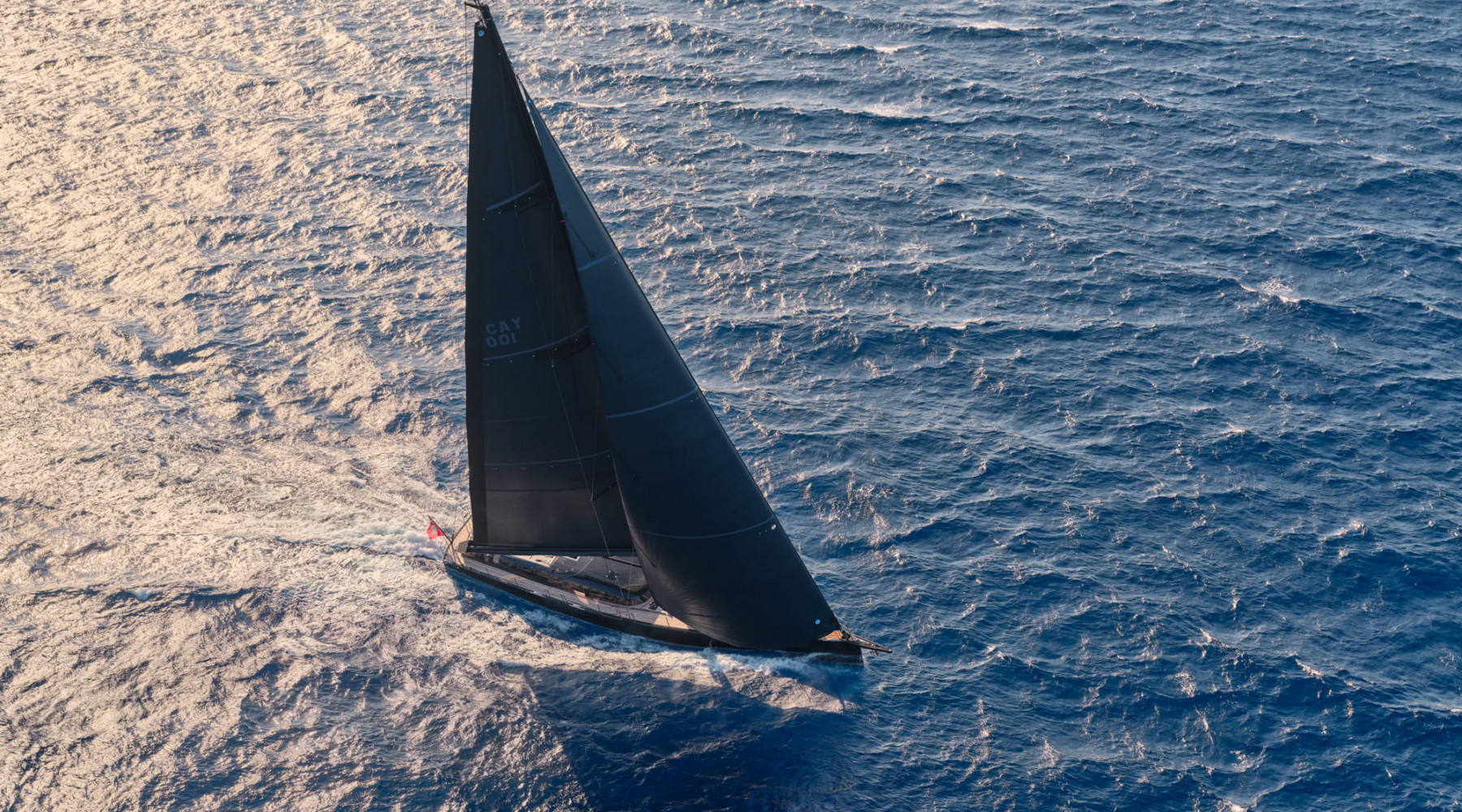

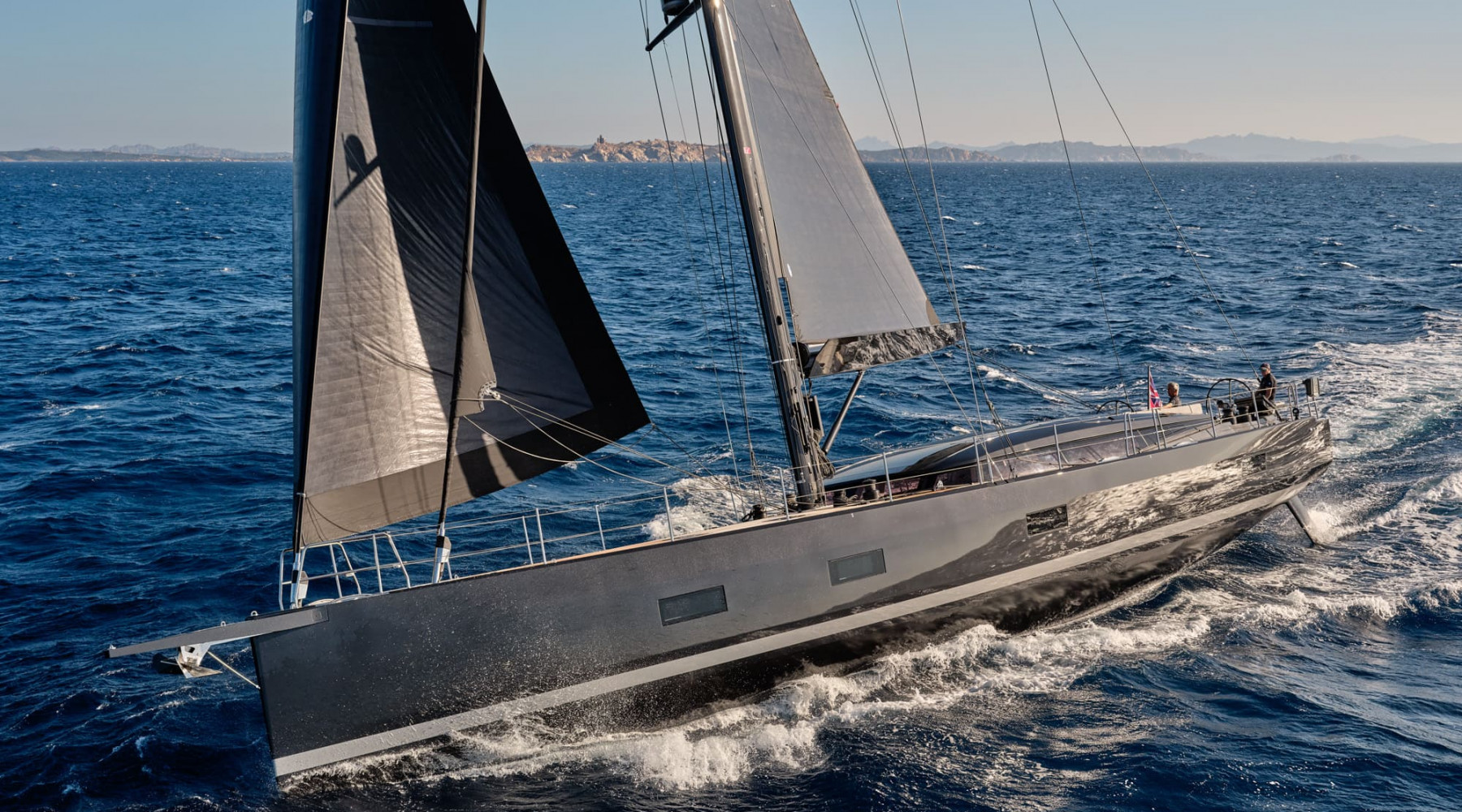

CNB 78 as per standard specification including the bowsprit

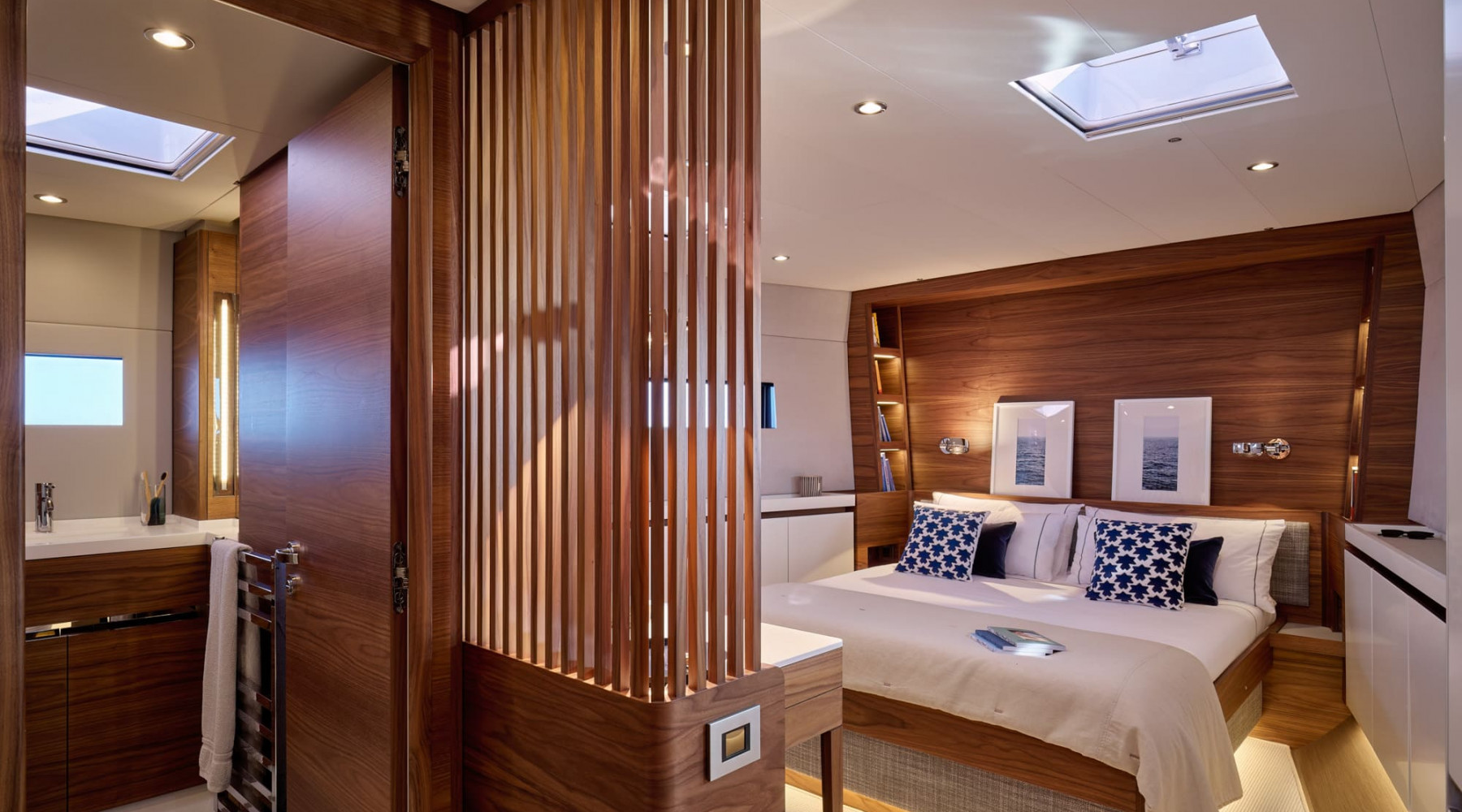

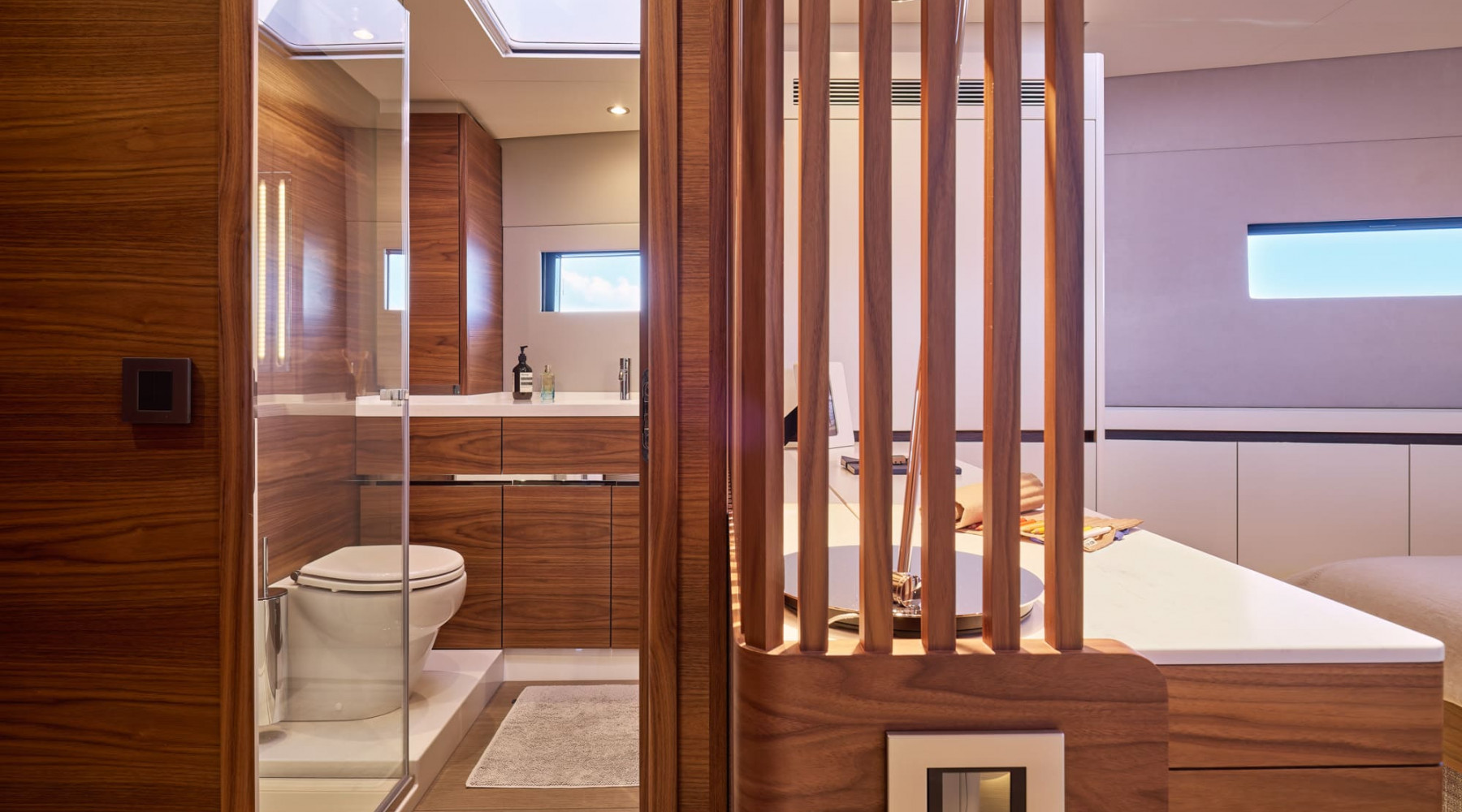

Layout "A" Owner's cabin with central bed facing forward with sofa on the fore bulkhead

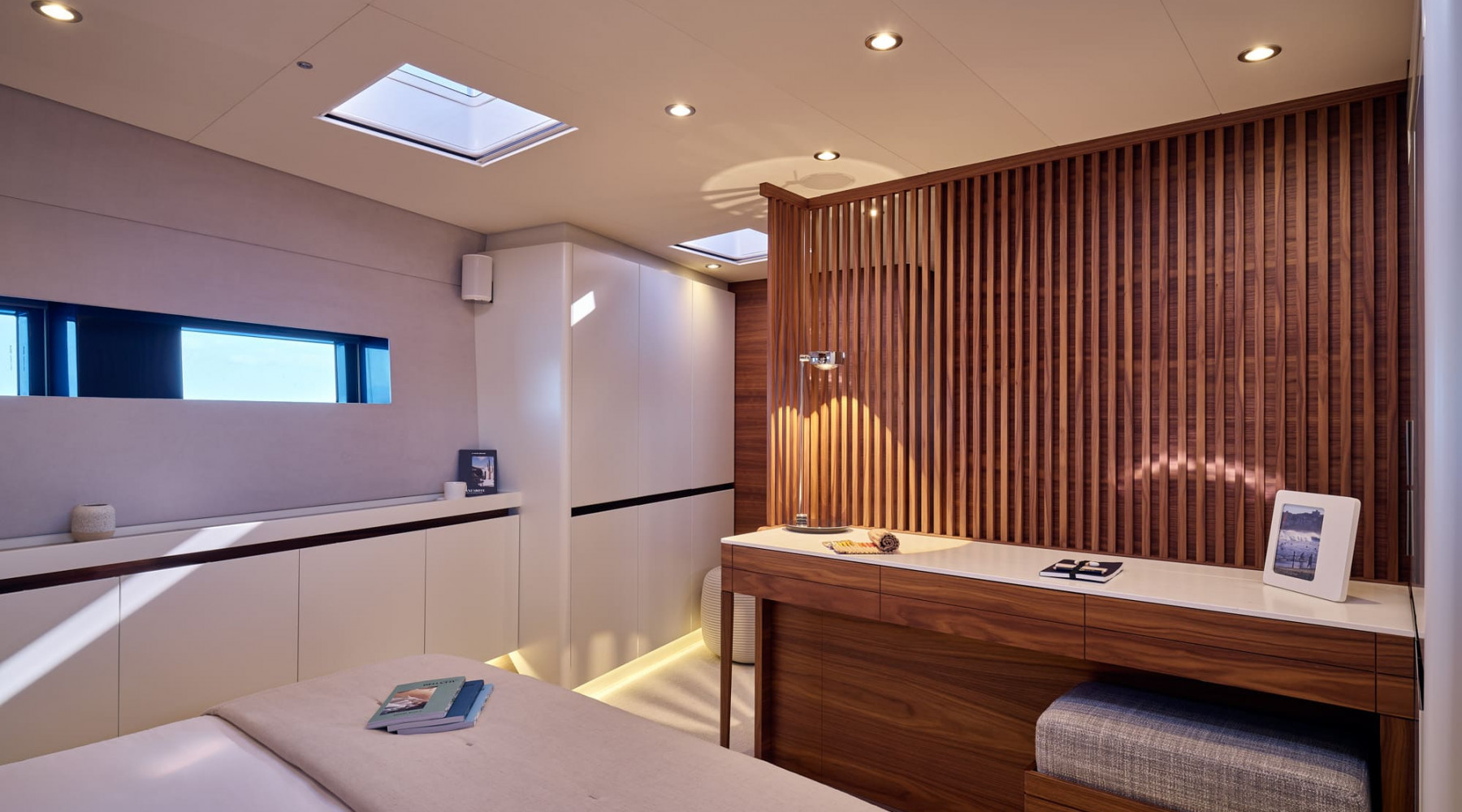

Owner's cabin equipped with central bed facing aft and a desk on the rear bulkhead Layout "B"

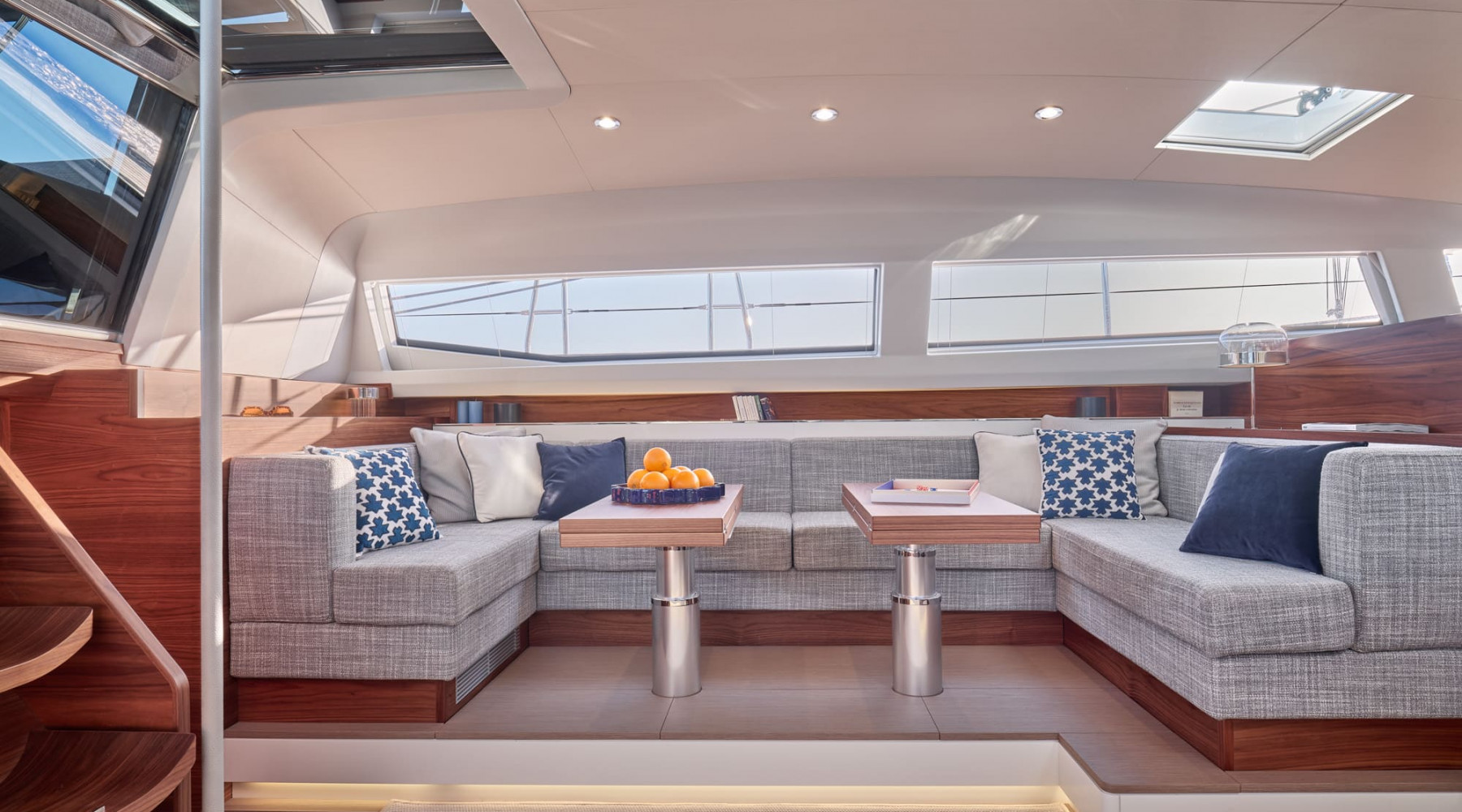

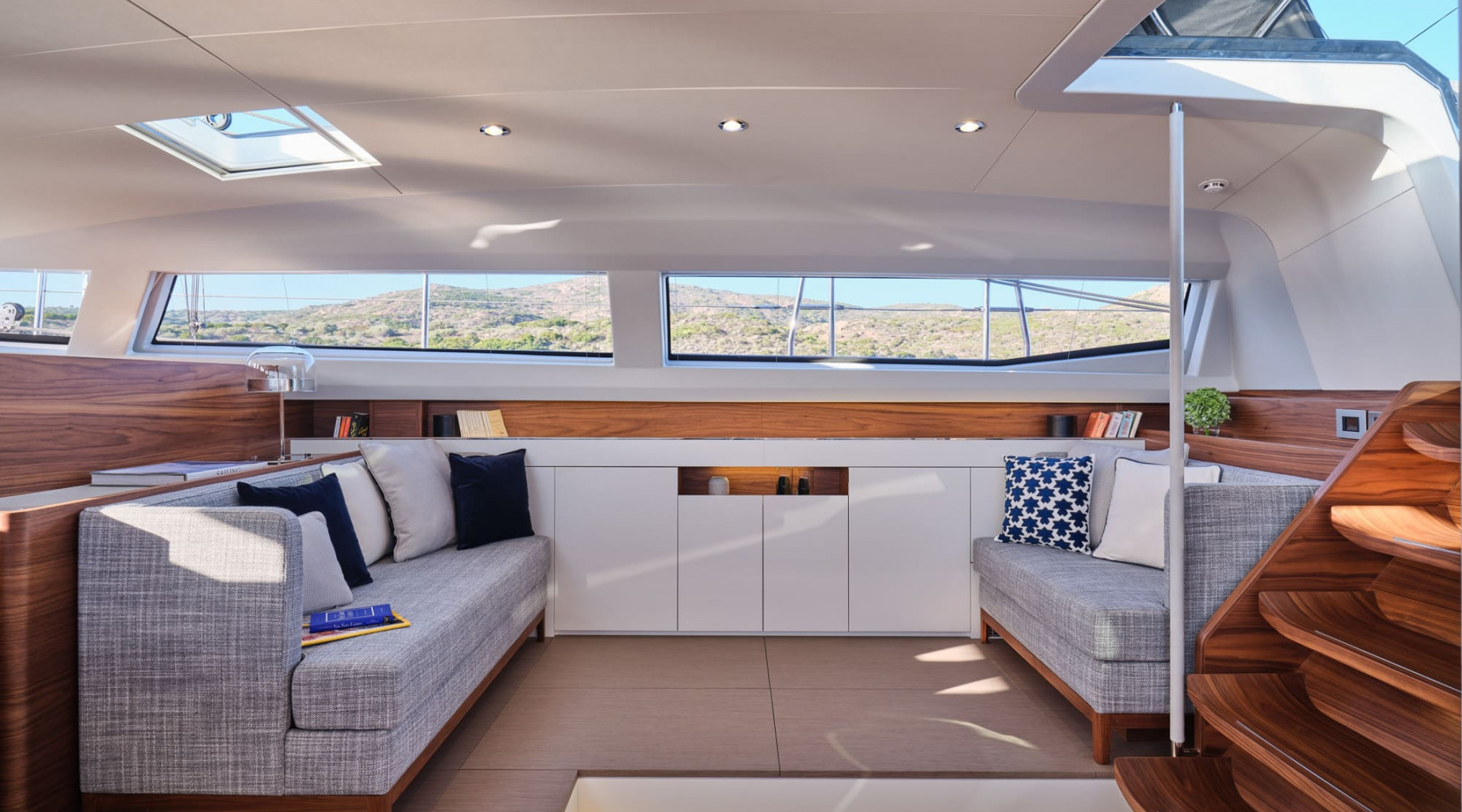

Alternative saloon layout with 2 facing sofas and small bar on starboard

Finishing 2: "Siena striped Cherry"

Construction

Construcción

Bow Thruster, retractable, electric (with dedicated batteries bank) - Side Power

Stern Thruster, retractable, electric (with dedicated batteries bank) - Side Power

Interiors

Interiores

Saloon cushions in special fabrics Zimmer-Rhode or equivallent

Reverse cycle air conditioning in the saloon, galley and 4 cabins 65,000 Btu/h (the temperature of each room can be adjusted independently)

Laundry washer dryer integrated in the galley

Dishwasher Miele 220V integrated in the galley

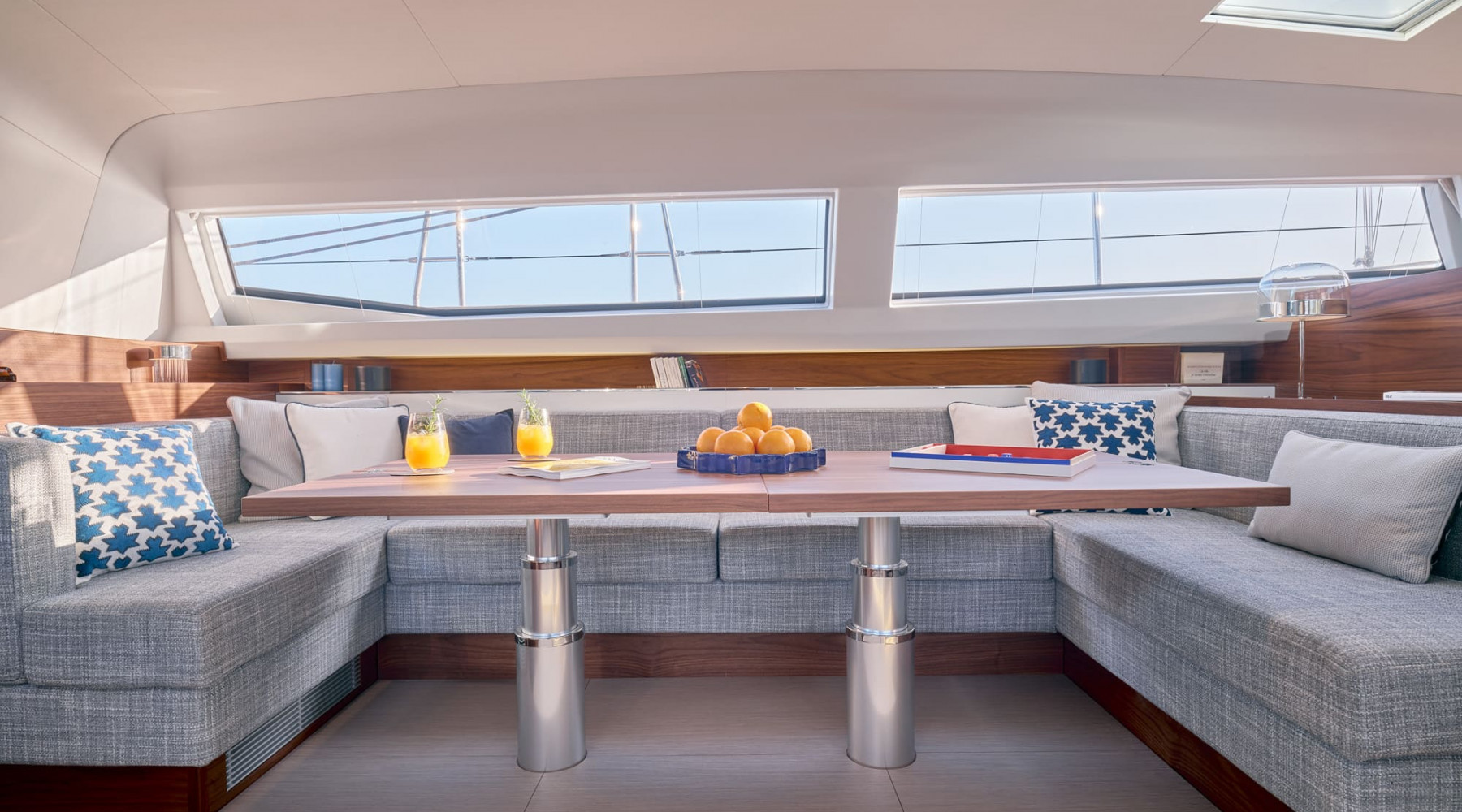

Electric telescopic table in the saloon convertible in bed

Safe (price per cabin)

Tube frame in sail locker

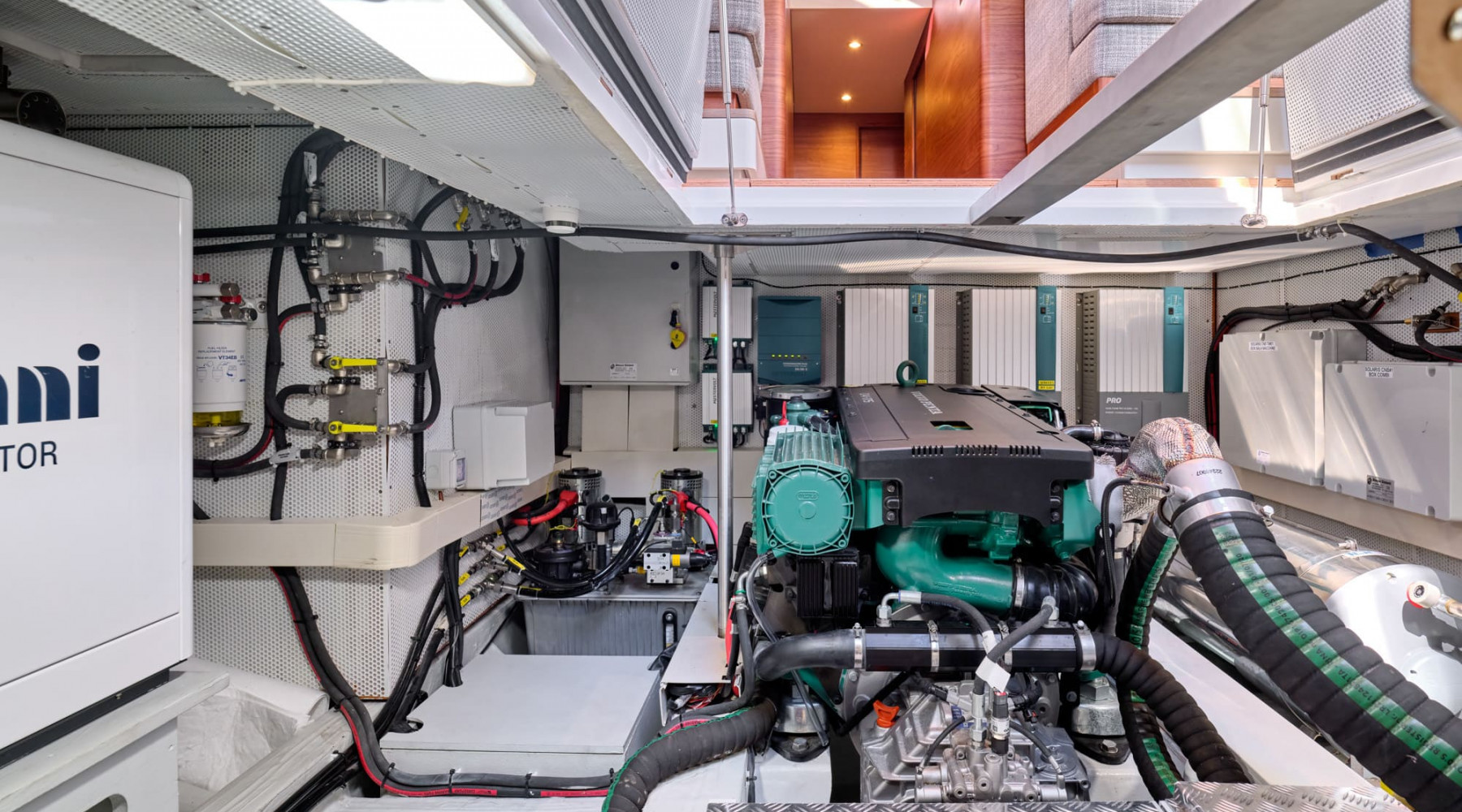

Engine

Motorización

Additional engine (and thrusters) control on portside

Varifold folding propeller 4 blades for standard engine

Rope cutter on the propeller shaft

Fire extinguish in compliance with MCA for the engine room

Water system

Sistema de agua

Deck wash pump close to windlass (fresh and salt water)

Deck wash pump outlet in cockpit (fresh water)

Water maker 230V Osmosea - Evo 300l/h

Cooling System

Sistema frigorífico

90L extra deep freezer in the galley (can also be used as a fridge) (not compatible with the option above)

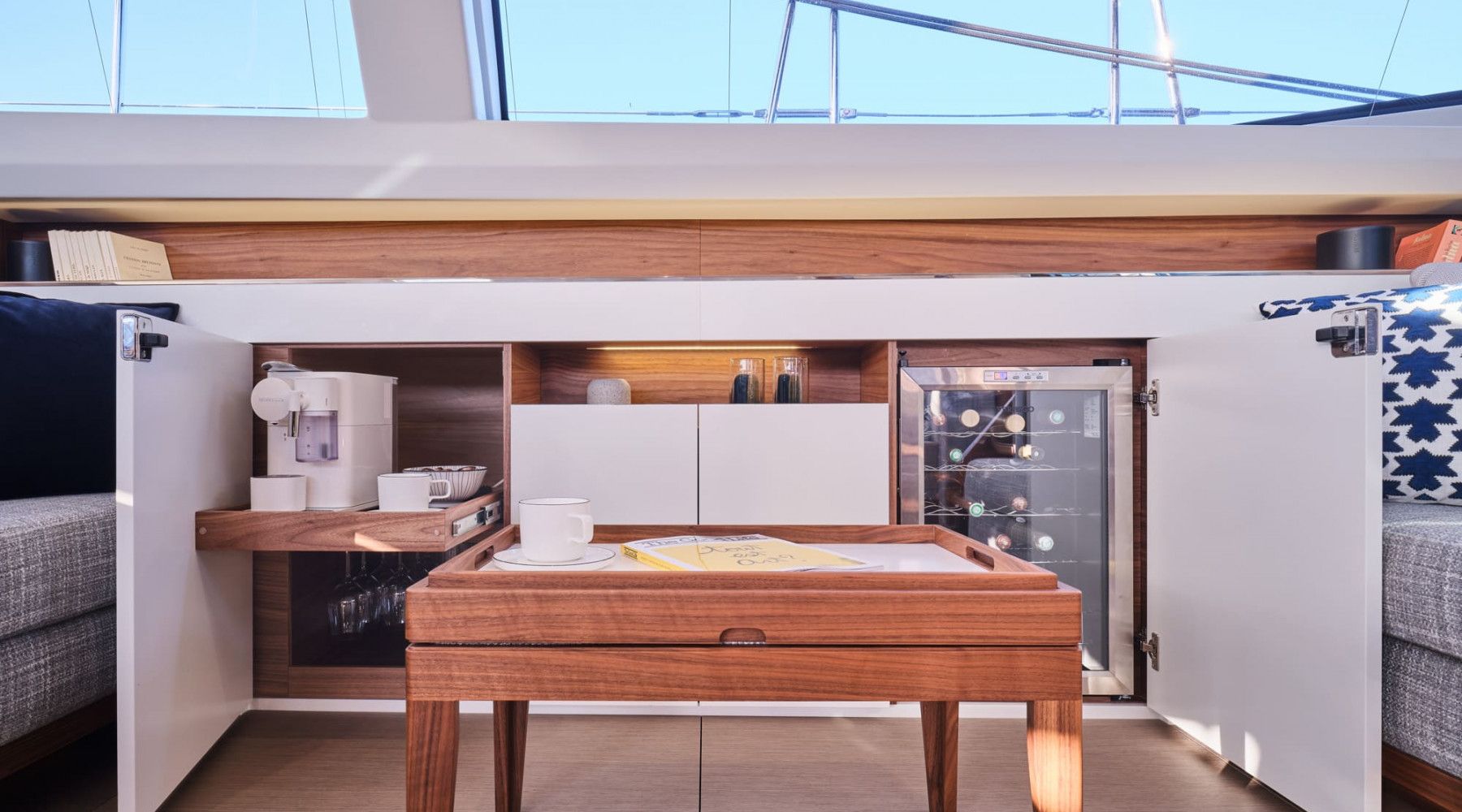

Wine cellar for 16 bottles integrated in the saloon on starboard, backwards (not compatible with the fridge, opt. 07.06)

Coffee machine in a drawer with storage, integrated in the saloon on starboard, forward (Not compatible with the ice maker opt. 07.04 if mounted in the same position)

Stainless steel fridge in the cockpit (25L)

Deck equipment

Equipo de cubierta

Painting of the hull with high quality products, type Awlcraft 2000 by Awlgrip, metallic colour palette, light

Painting of the deck with high quality products, type Awlcraft 2000 by Awlgrip, metallic colour palette, light

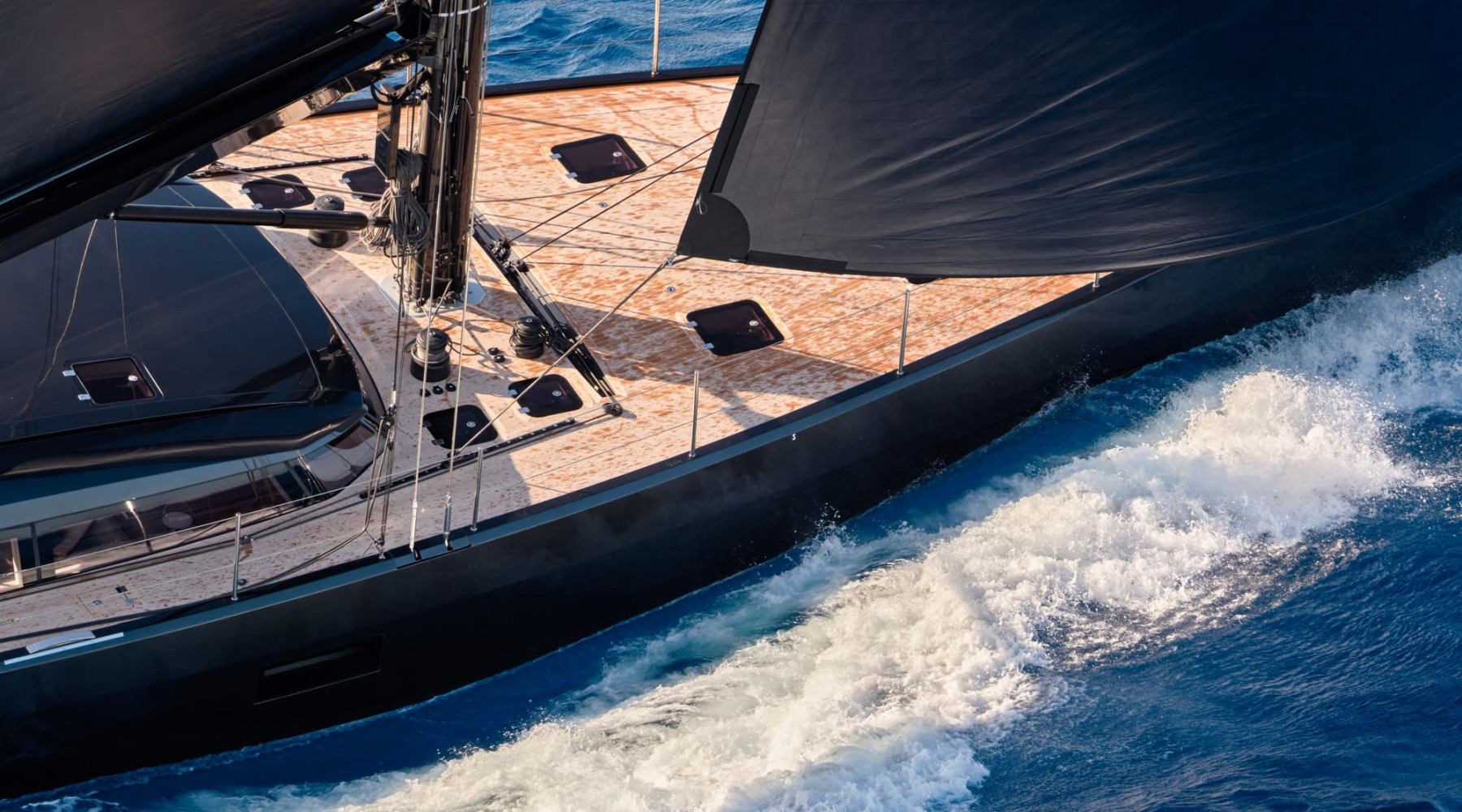

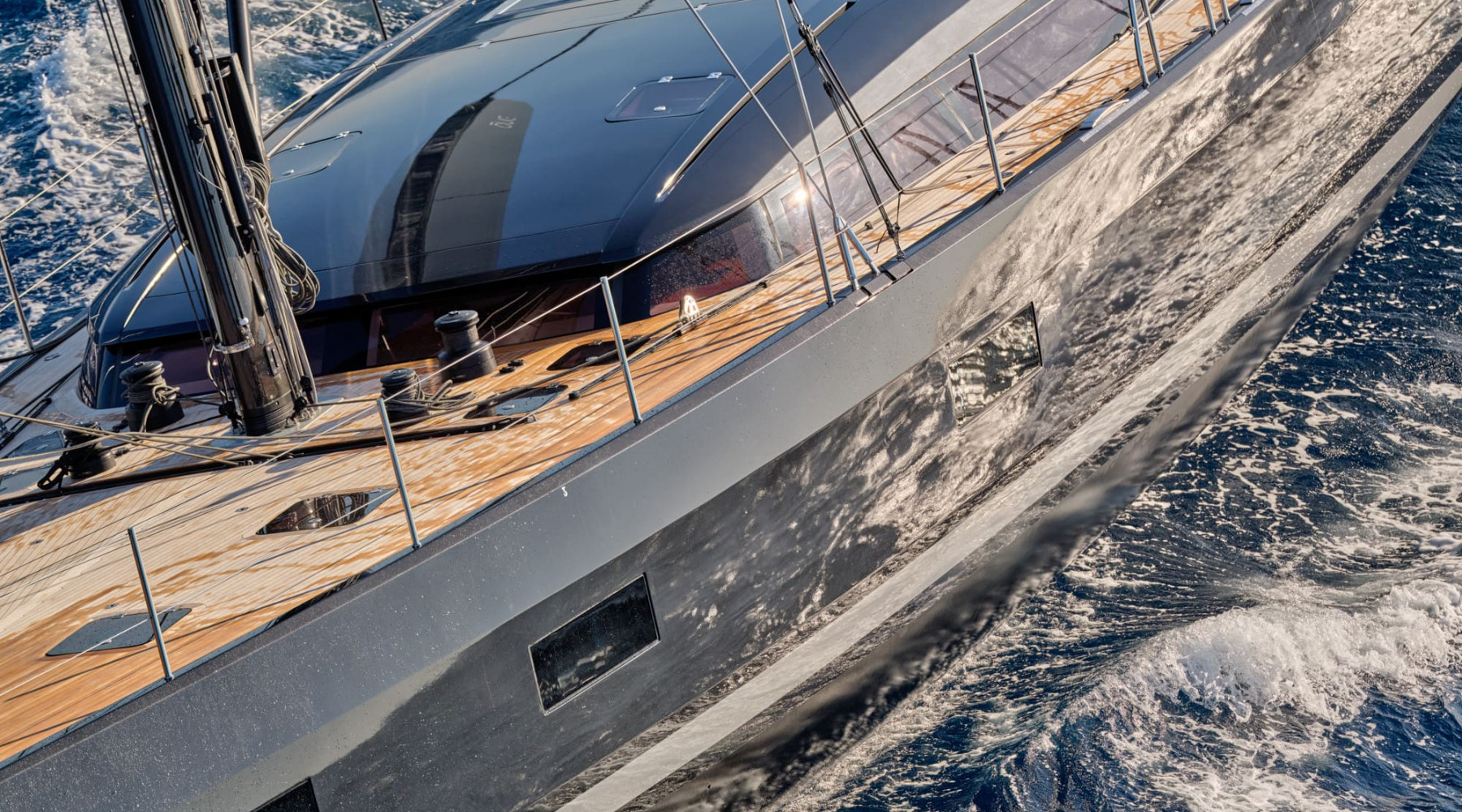

Deck covered in teak (grey or black caulking)

Cockpit cushions (including helm seats cushions)

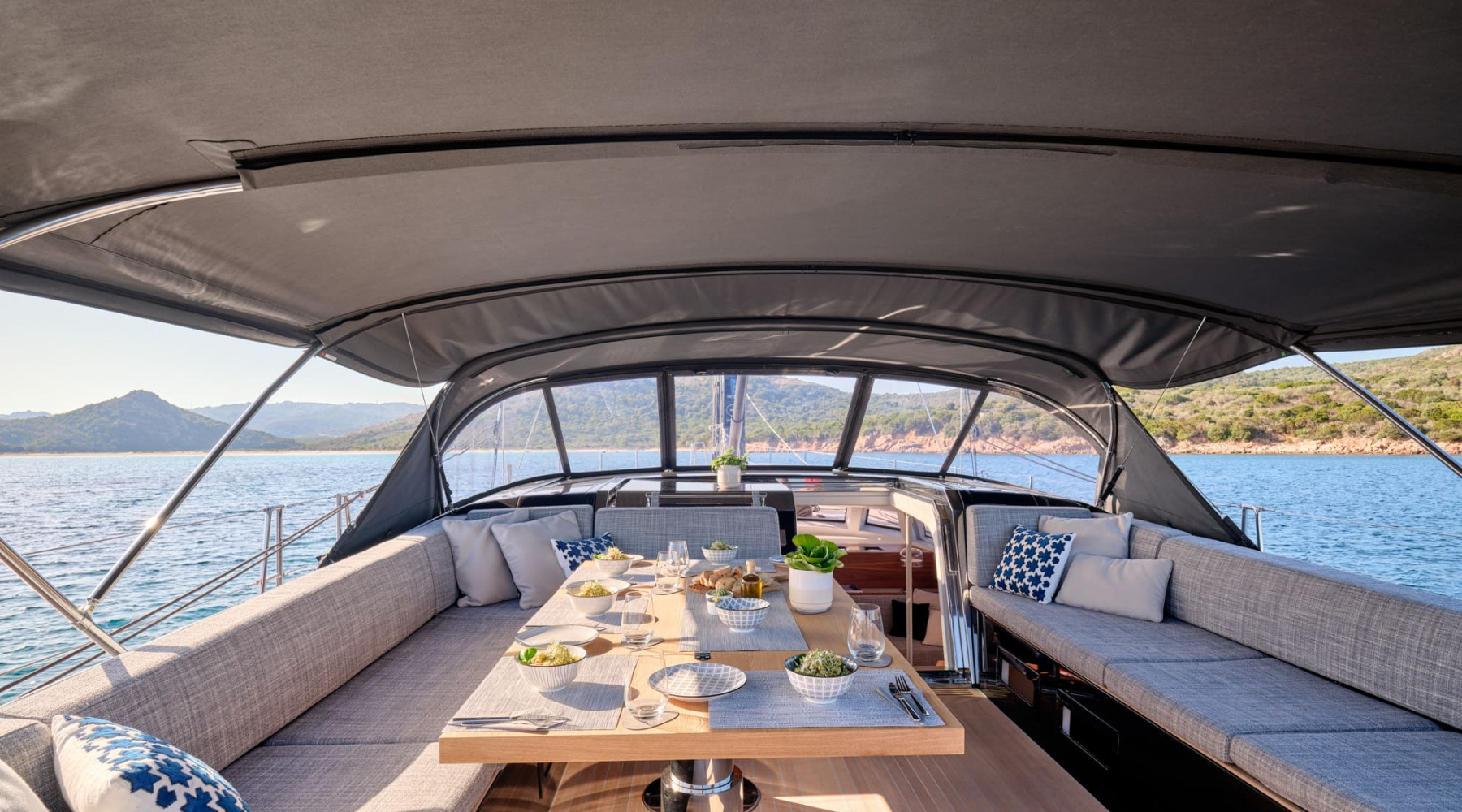

Bimini top with connection to sprayhood

Cockpit covers (for the wheels, navigation panels, cockpit winches, cockpit table. Garage white canvas screen)

2 x primary electric winches ST80 instead of manual (3 speeds)

2 x multi-function cockpit electric winches ST70 instead of manual (2 speeds)

Port winch at mast step (reefing lines) electric ST70 instead of manual (2 speeds)

3rd stbd winch at mast step (asym. Spinnaker/Gennaker/Code 0) electric ST70 (3 speeds)

Electric mainsheet winch B990.3 STAA instead of the ST 80 electric

Telescopic table in the cockpit (the table is mounted on two electric rams and can be converted into a low table, or into a sunbath area)

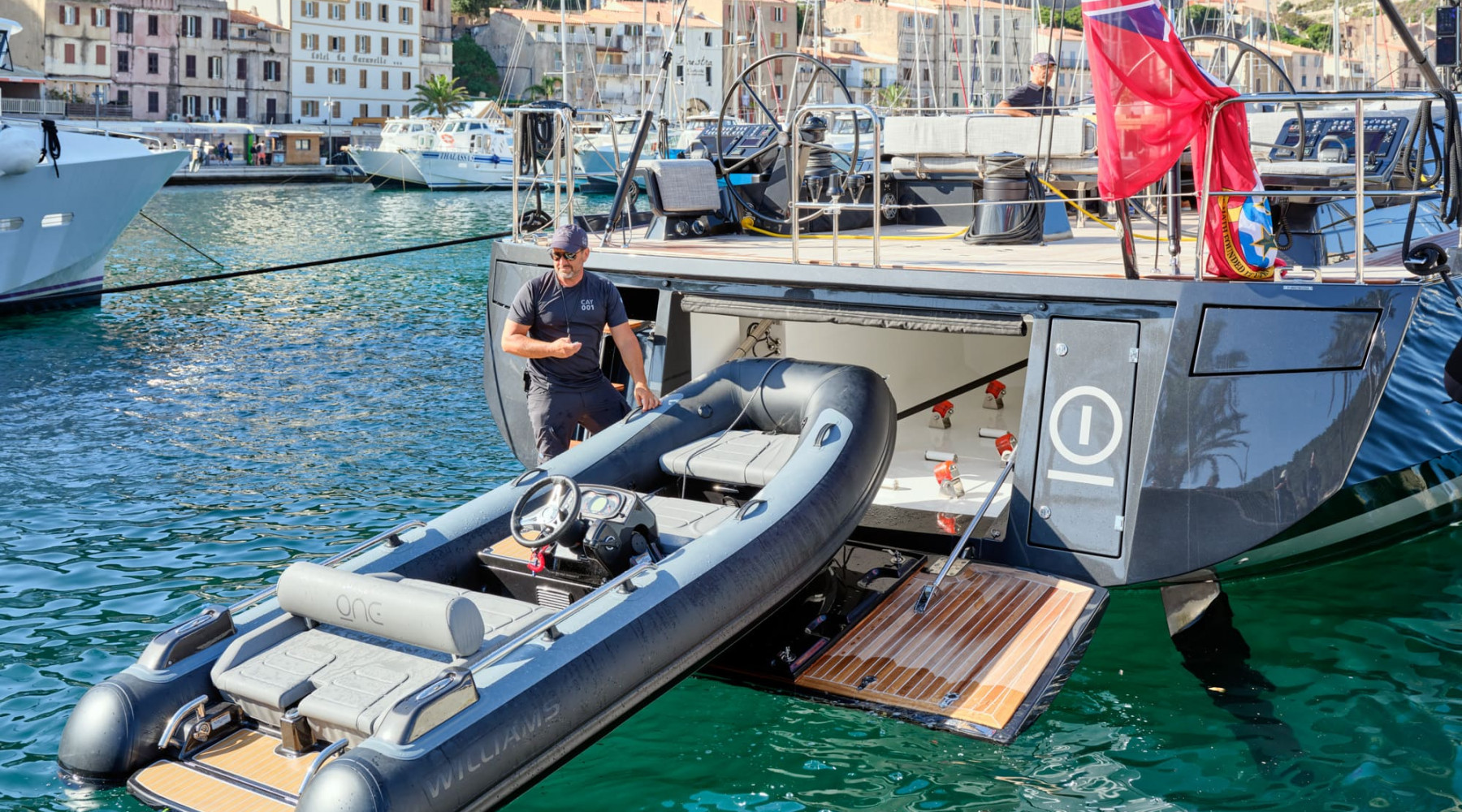

Tender launching system including rolls, dedicated winch inside the tender garage, padeye for fixing the tender

Removable and foldable carbon gangway 3,20mt

Retractable capstan on foredeck , Harken CLR 1200 2000W/24V

Steering system

Sistema de dirección

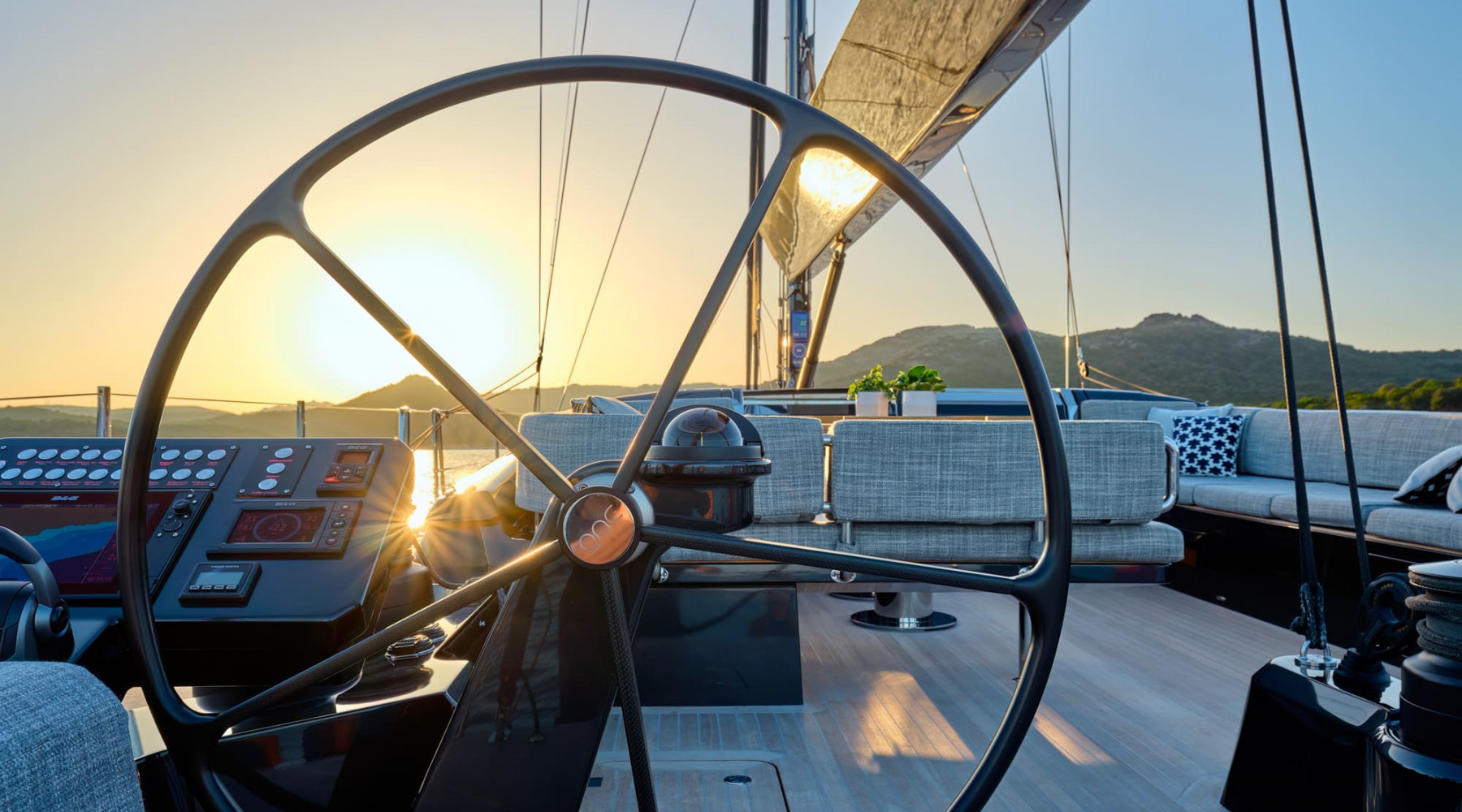

Carbon steering wheels "Carbonautica"

Rig/Sails

Aparejo/Velas

In mast main-sail hydraulic furler on aluminium mast, with hydraulic outhaul

Hydraulic furler for genoa (Reckmann)

Staysail rig on fixed stay, with manual furler (including halyard, sheet and jammer)

Asymmetrical spinnaker rigging (with tack line, sheets, blocks and 1:1 halyard)

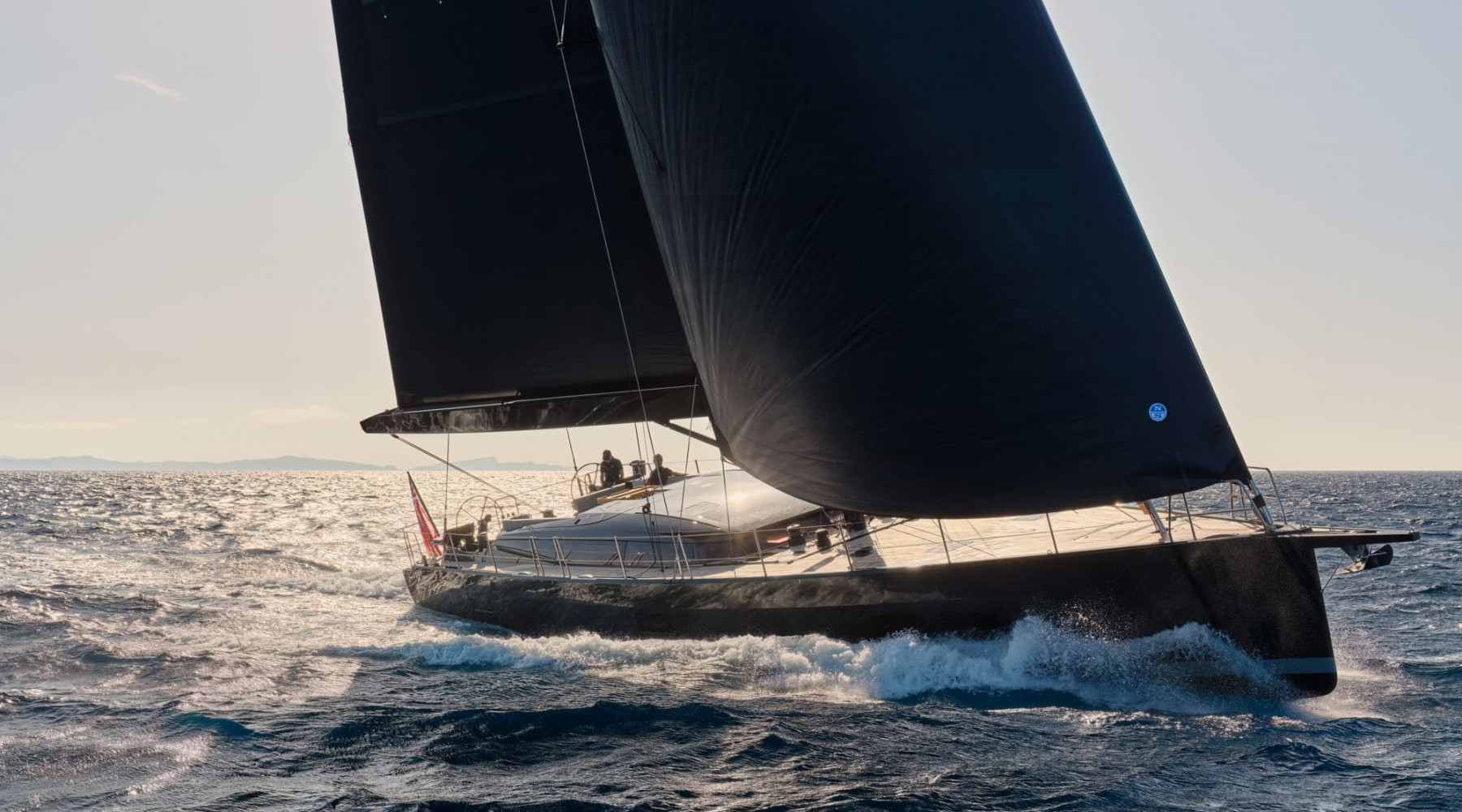

North Sails or Incidence set of sails (including sail cars and boom cover)

Electrical system

Sistema eléctrico

Additional 24V - 100A - 3500W Battery Charger combined with Inverter Mass Combi Pro

Navigation/ Electronics

Navegación/Electrónica

B&G H5000 navigation pack including:
Chart table one display Zeus3 Glass Helm 19"
Portside and starboard steering console 1 H5000 autopilot display, 1 Grafic H5000 display, 1 multifunction Zeus3S 9" display, Hydra H5000 autopilot, compass detector Precision-9, speed, wind, depth transducer WS310, rotary mechanical drive unit Jefa 24V
Others VHF V100 B&G, external VHF, Radar Halo 20 Plus, Transponder AIS, Navionics Plus chart, Transponder AIS NAIS-550, GPS ZG100, wireless autopilot controller WR10, interface to visualize the Volvo Penta engine data in the plotter

Glomex TV Antenna with power supply and amplifier for up to 2 TVs. Installed at the top of the mast with accessories

Entertainment

Entretenimiento

50' TV flat screen on lift in the saloon

SONOS® music system integrated equipment in saloon & cockpit : 4 speakers in the saloon and 2 speakers in the cockpit

50" TV flat screen on a lift in owner's cabin

Delivery

Entrega

Antifouling, mast fitting, launching, mooring kit and preparation of the boat. 3 days training for the use of all equipments

SAFETY EQUIPMENT

FLOATING LIGHT.

LIFE RAFT

LIFE RAFT (CONTAINER) - 12 PAX

ELECTRONICS

PORTABLE VHF

NAVIONICS GOLD MEDITERRANEAN AND BLACK SEA CHART

SATELLITE BEACON

HOMOLOGATED LIFEVESTS

x12 150 NW HOMOLOGATED LIFEJACKET (SELF-INFLATING - WITH LED LIGHT)
